Group

Group is a named collection of user or group identifiers. It can have permissions assigned to them directly or via the group membership, but cannot be authenticated.

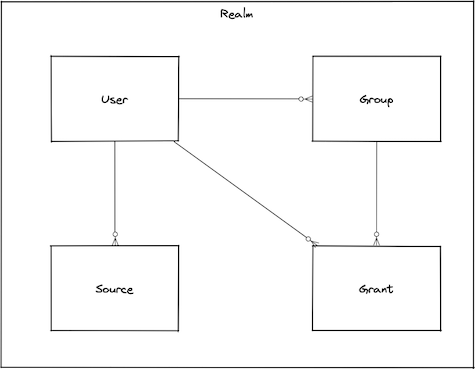

Description

You can use user groups to specify permissions for a collection of users, which makes permissions easier to manage for those users. When you grant a permission to a group, all of the users (and groups) in the group are granted that permission (by transitive rule).

Reserved Names

The following names are reserved and Bondy will not allow them to be used as a value for the groups's name property: all and anonymous.

Types

input_data()

The object used to create or update a group.

The object represents as overview of the all group properties but the available properties are detailed in each particular operation.

namestringREQUIREDIMMUTABLE

The group identifier. This is always in lowercase.

groupsarray[string]

A list of group names.

metamapREQUIRED

Group metadata.

Default: {}

group()

The representation of the group returned by the read or write operations e.g. get, list, add or update.

namestringREQUIREDIMMUTABLE

The group identifier. This is always in lowercase.

groupsarray[string]

A list of group names.

metamapREQUIRED

Group metadata.

Default: {}

Procedures

Name	URI
Add a group to a realm	bondy.group.add
Add a group to a group	bondy.group.add_group
Add groups to a group	bondy.group.add_groups
Delete a group from a realm	bondy.group.delete
Retrieve a group from a realm	bondy.group.get
List all groups from a realm	bondy.group.list
Remove a group from a group	bondy.group.remove_group
Remove groups from a group	bondy.group.remove_groups
Update a group into a realm	bondy.group.update

Add a group to a realm

bondy.group.add(realm_uri(), input_data()) -> group()

Creates a new group and add it on the provided realm uri.

Publishes an event under topic bondy.group.added after the group has been created.

Call

Positional Args

0stringREQUIRED

The URI of the realm you want to add a group.

1object

The group configuration data

namestringREQUIREDIMMUTABLE

The group identifier. This is always in lowercase.

groupsarray[string]

A list of group names.

metamapREQUIRED

Group metadata.

Default: {}

Keyword Args

None.

Result

Positional Results

0object

The created group.

namestringREQUIREDIMMUTABLE

The group identifier. This is always in lowercase.

groupsarray[string]

A list of group names.

metamapREQUIRED

Group metadata.

Default: {}

Keyword Results

None.

Errors

• bondy.error.already_exists: when the provided name already exists.
• bondy.error.missing_required_value: when a required value is not provided
• bondy.error.invalid_datatype: when the data type is invalid
• bondy.error.invalid_value: when the data value is invalid
• bondy.error.invalid_data: when the data values are invalid
• bondy.error.no_such_groups: when any of the provided group name doesn't exist.
• bondy.error.not_found: when the provided realm uri is not found.

Examples

Success Call

• Request

./wick --url ws://localhost:18080/ws \
--realm com.leapsight.bondy \
call bondy.group.add \
"com.leapsight.test_creation_1" '{"name":"group_1"}' | jq

• Response:

{
  "groups": [],
  "meta": {},
  "name": "group_1",
  "type": "group",
  "version": "1.1"
}

Success Call with Groups

• Request

./wick --url ws://localhost:18080/ws \
--realm com.leapsight.bondy \
call bondy.group.add \
"com.leapsight.test_creation_1" '{"name":"group_2", "groups":["group_1"]}' | jq

• Response:

{
  "groups": [
    "group_1"
  ],
  "meta": {},
  "name": "group_2",
  "type": "group",
  "version": "1.1"
}

Add a group to a group

bondy.group.add_group(realm_uri(), name(), name())

Adds an existing group name to another existing group name.

Call

Positional Args

0stringREQUIRED

The URI of the realm you want to modify the group.

1stringREQUIRED

The name of the group you want to add a group name.

2stringREQUIRED

The group name to add.

Keyword Args

None.

Result

Positional Results

None.

Keyword Results

None.

Errors

• wamp.error.invalid_argument: when there is an invalid number of positional arguments.
• bondy.error.no_such_groups: when the provided group name doesn't exist.

Examples

Success Call

• Request

./wick --url ws://localhost:18080/ws \
--realm com.leapsight.bondy \
call bondy.group.add_group \
"com.leapsight.test_creation_1" "group_1" "group_2"

• Checking the updated group Response
• Request

./wick --url ws://localhost:18080/ws \
--realm com.leapsight.bondy \
call bondy.group.get "com.leapsight.test_creation_1" "group_1" | jq

• Response

Add groups to a group

bondy.group.add_groups(realm_uri(), name(), [name()])

Adds a list of existing group names to another existing group name.

Call

Positional Args

0stringREQUIRED

The URI of the realm you want to modify the group.

1stringREQUIRED

The name of the group you want to add a group names.

2array[string]REQUIRED

The group names to add.

Keyword Args

None.

Result

Positional Results

None.

Keyword Results

None.

Errors

• wamp.error.invalid_argument: when there is an invalid number of positional arguments.
• bondy.error.no_such_groups: when any of the provided group names doesn't exist.

Examples

Success Call

• Request

./wick --url ws://localhost:18080/ws \
--realm com.leapsight.bondy \
call bondy.group.add_groups \
"com.leapsight.test_creation_1" "group_1" '["group_2","group3"]'

• Checking the updated group Response
• Request

./wick --url ws://localhost:18080/ws \
--realm com.leapsight.bondy \
call bondy.group.get "com.leapsight.test_creation_1" "group_1" | jq

• Response

Delete a group from a realm

bondy.group.delete(realm_uri(), name())

Deletes an existing group from the provided realm uri.

Publishes an event under topic bondy.group.deleted after the group has been deleted.

Call

Positional Args

0stringREQUIRED

The URI of the realm you want to modify the group.

1stringREQUIRED

The name of the group you want to delete.

Keyword Args

None.

Result

Positional Results

None.

Keyword Results

None.

Errors

• bondy.error.unknown_group: when the provided group name is not found.

Examples

Success Call

• Request

./wick --url ws://localhost:18080/ws \
--realm com.leapsight.bondy \
call bondy.group.delete \
"com.leapsight.test_creation_1" "group_3"

Retrieve a group from a realm

bondy.group.get(realm_uri(), name()) -> group()

Retrieves the requested group name on the provided realm uri.

Call

Positional Args

0stringREQUIRED

The URI of the realm you want to retrieve the group.

1stringREQUIRED

The group name of the group you want to retrieve.

Keyword Args

None.

Result

Positional Results

The call result is a single positional argument containing a group:

namestringREQUIREDIMMUTABLE

The group identifier. This is always in lowercase.

groupsarray[string]

A list of group names.

metamapREQUIRED

Group metadata.

Default: {}

Keyword Results

None.

Errors

• bondy.error.not_found: when the provided group name is not found.

Examples

Success Call

• Request

./wick --url ws://localhost:18080/ws \
--realm com.leapsight.bondy \
call bondy.group.get "com.leapsight.test_creation_1" "group_2" | jq

• Response

{
  "groups": [
    "group_1"
  ],
  "meta": {},
  "name": "group_2",
  "type": "group",
  "version": "1.1"
}

List all groups from a realm

bondy.group.list(realm_uri()) -> [group()]

Lists all groups of the provided realm uri.

TO_CHECK

By default, the anonymous group is returned but maybe it is no clear when the provided realm doesn't exist.

Call

Positional Args

0stringREQUIRED

The URI of the realm you want to retrieve the groups.

Keyword Args

None.

Result

Positional Results

The call result is a single positional argument containing a list of groups.

0array[object]

The groups of the realm you want to retrieve.

namestringREQUIREDIMMUTABLE

The group identifier. This is always in lowercase.

groupsarray[string]

A list of group names.

metamapREQUIRED

Group metadata.

Default: {}

Keyword Results

None.

Errors

None.

Examples

Success Call

• Request

./wick --url ws://localhost:18080/ws \
--realm com.leapsight.bondy \
call bondy.group.list \
"com.leapsight.test_creation_1" | jq

• Response:

[
  {
    "groups": [],
    "meta": {},
    "name": "anonymous",
    "type": "group",
    "version": "1.1"
  },
  {
    "groups": [],
    "meta": {},
    "name": "group_1",
    "type": "group",
    "version": "1.1"
  }
]

Remove a group from a group

bondy.group.remove_group(realm_uri(), name(), name())

Removes an existing group name from another existing group name.

Call

Positional Args

0stringREQUIRED

The URI of the realm you want to modify the group.

1stringREQUIRED

The name of the group you want to remove a group name.

2stringREQUIRED

The group name to remove.

Keyword Args

None.

Result

Positional Results

None.

Keyword Results

None.

Errors

• wamp.error.invalid_argument: when there is an invalid number of positional arguments.
• bondy.error.no_such_groups: when the provided group name doesn't exist.
• bondy.error.not_found: when the provided group name is not found.

Examples

Success Call

• Request

./wick --url ws://localhost:18080/ws \
--realm com.leapsight.bondy \
call bondy.group.remove_group \
"com.leapsight.test_creation_1" "group_1" "group_2"

• Checking the updated group Response
• Request

./wick --url ws://localhost:18080/ws \
--realm com.leapsight.bondy \
call bondy.group.get "com.leapsight.test_creation_1" "group_1" | jq

• Response

Remove groups from a group

bondy.group.remove_groups(realm_uri(), name(), [name()])

Removes a list of existing group names from another existing group name.

Call

Positional Args

0stringREQUIRED

The URI of the realm you want to modify the group.

1stringREQUIRED

The name of the group you want to remove a group names.

2array[string]REQUIRED

The group names to remove.

Keyword Args

None.

Result

Positional Results

None.

Keyword Results

None.

Errors

• wamp.error.invalid_argument: when there is an invalid number of positional arguments.
• bondy.error.no_such_groups: when any of the provided group names doesn't exist.

Examples

Success Call

• Request

./wick --url ws://localhost:18080/ws \
--realm com.leapsight.bondy \
call bondy.group.remove_groups \
"com.leapsight.test_creation_1" "group_1" '["group_2","group3"]'

• Checking the updated group Response
• Request

./wick --url ws://localhost:18080/ws \
--realm com.leapsight.bondy \
call bondy.group.get "com.leapsight.test_creation_1" "group_1" | jq

• Response

Update a group into a realm

bondy.group.update(realm_uri(), name(), input_data()) -> group()

Updates an existing group.

Publishes an event under topic bondy.group.updated after the group has been updated.

Call

Positional Args

0stringREQUIRED

The URI of the realm you want to update a group.

1stringREQUIRED

The name of the group you want to update.

2object

The group configuration data

namestringREQUIREDIMMUTABLE

The group identifier. This is always in lowercase.

groupsarray[string]

A list of group names.

metamapREQUIRED

Group metadata.

Default: {}

Keyword Args

None.

Result

Positional Results

0object

The updated group.

namestringREQUIREDIMMUTABLE

The group identifier. This is always in lowercase.

groupsarray[string]

A list of group names.

metamapREQUIRED

Group metadata.

Default: {}

Keyword Results

None.

Errors

• wamp.error.invalid_argument: when there is an invalid number of positional arguments.
• bondy.error.invalid_datatype: when the data type is invalid
• bondy.error.invalid_value: when the data value is invalid
• bondy.error.invalid_data: when the data values are invalid
• bondy.error.no_such_groups: when any of the provided group name doesn't exist.
• bondy.error.unknown_group: when the provided realm uri is not found.

Examples

Success Call

• Request

./wick --url ws://localhost:18080/ws \
--realm com.leapsight.bondy \
call bondy.group.update \
"com.leapsight.test_creation_1" "group_1" '{"groups":["group_2"]}' | jq

• Response:

{
  "groups": [
    "group_2"
  ],
  "meta": {},
  "name": "group_1",
  "type": "group",
  "version": "1.1"
}

Topics

bondy.group.added

Positional Results

0string

The realm uri.

1string

The name of the group you have added.

Keyword Results

None.

bondy.group.updated

Positional Results

0string

The realm uri.

1string

The name of the group you have updated.

Keyword Results

None.

bondy.group.deleted

Positional Results

0string

The realm uri.

1string

The name of the group you have deleted.

Keyword Results

None.
